Description

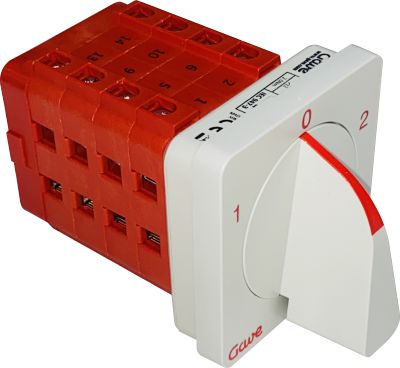

Changeover cam switch, IP20 with 1-0-2 grey front plate 64x64 for panel
fixing. 4 poles 32A. Size D1. Ergonomic screwless quick-mount handle.
Connection with cage terminals for 6-16 mm² cable.
- Thermal rating (Ith) 40 A
- Wire section (AWG) 6 Wire section rigid 6 - 25 mm2 Wire section flexible 6 - 16 mm2
- Tightening torque 2 Nm
- Connection screws M5 Terminal
- Max. fuse protection (gG/aM) 40/32 A (415 V) 40/32 A (500 V)
- Conditional shortcircuit current (Icc) 6 kA (415 V) 6 kA (500 V)
- Insulating voltage (V~) 690 Insulating voltage (V...) 600
- Operational rating (Ie) 32 A Dummy AC-21A 11 kW (3x230 V) 18,5 kW (3x415 V) 22 kW (3x500 V) Mixed load AC-22A 7,5 kW (3x230 V) 15 kW (3x415 V) 18,5 kW (3x500 V) Motor load AC-23A 5,5 kW (3x230 V) 11 kW (3x415 V) 15 kW (3x500 V)
- UL Electric characteristics 2 hp 1-fase (110-120 V) 3 hp 1-fase (220-240 V) 7,5 hp 3-fase (220-240 V) 10 hp 3-fase (380-415 V) 10 hp 3-fase (440-480 V) 15 hp 3-fase (550-600 V)
- Standards IEC 60947-3 UL 508
