Description
F&P oven door hinge pin repair kit (hinge not included) to suit RA6102-6106 and OR61 Series ranges. The kit is for one side only, two required per door. This type of hinge was also fitted to most pre-2000 F&P models of ovens and ranges: Kelvinator, Frigidaire, Shacklock and F&P Champion branded ranges. Tip: if the oven door is simply removed by sliding out of the oven chassis then this kit will suit your oven. F&P 610 Oven Door Repair Guide

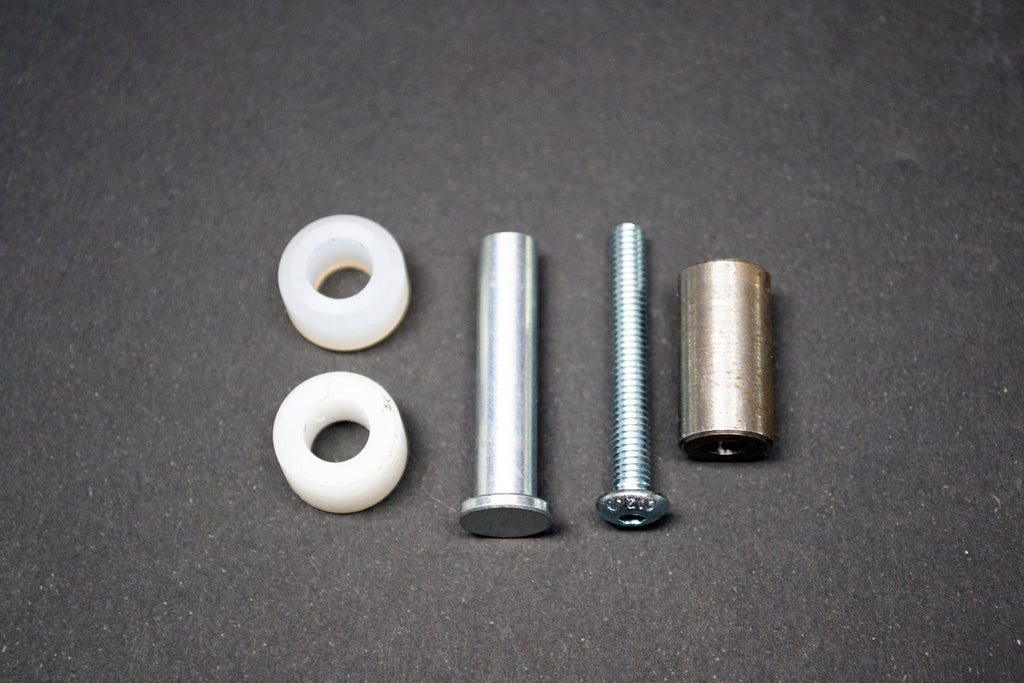

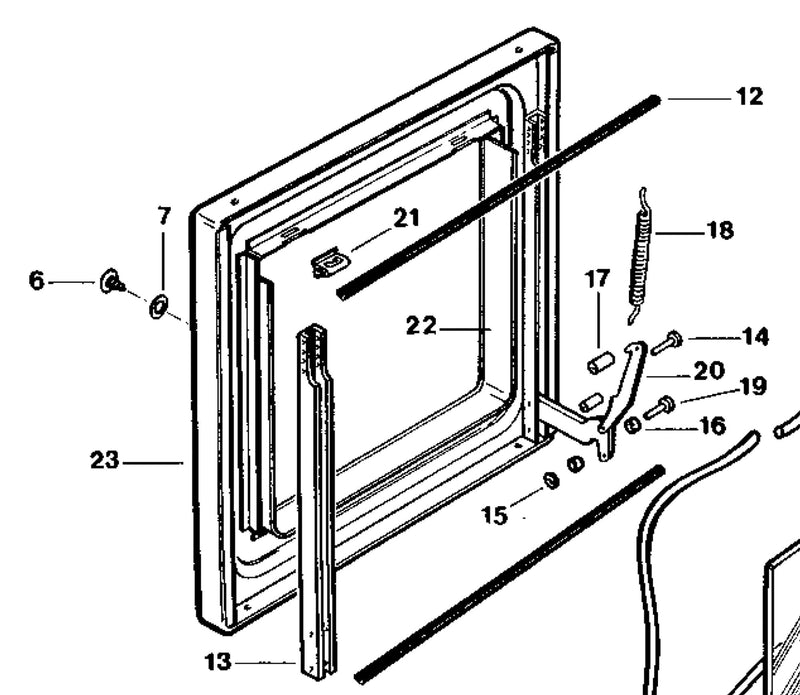

Kit comprises #19 hinge pin, #14 roller pin, #17 roller, 2 x #16 nylon hinge spacers.Additional parts you may need to repair the door: #20 hinge 471043, #18 spring 471150, #13 track 471009
F&P Built-in ovens: Custom 27, WO570T WO570TD WO570TC WO570X WO570XD WO570A WO570AD WO570E WO570ED
F&P Freestanding Ranges: Chef 21, Chef 24, Chef 27, 5357AWR, 5357SR, 5357WAR, M5357AWR, M5357AWRM, M5357EWR, 541N, 542WA, 544MAW, 545EW, 543AW, 544MAW, 545EW, RA535MAW, RA535MEW, RA535AW, RA535EW, RA535N, RA610MTDS, RA610MTWS, RA610MADS, RA610MAWS, RA610MEDS, RA610MEWS, RA610MAD, RA610PAW, RA610AWP, RA610AW, RA610EDS, RA610EWS, RA610MED, RA610MEW, RA610H, RA6102AW RA6102AWC RA6102AWP RA6102B RA6102BC RA6102FAW RA6102MAW RA6102MAWS RA6102MEDS RA6102MEW RA6102MEWC RA6102MEWS, RA6103AW, RA6103AWC, RA6103B, RA6103BC, RA6103MAW, RA6103MAWS, RA6103MEDS, RA6103MEW, RA6103MEWC, RA6103MEWS, RA6104, 6104, 6105AW, 6105EW, 6105SA, 6105T, 6105WA, 6105WAF, 6105WAP, M6104, M6105ED, M6105EDS, M6105EW, M6105EWS, M6105WA, 661TW, 662XD, 663TWS, 664XDS, M6106ADR, M6106AWR, M6106ADS, M6106AWS, M6106EWS, M6106EDS, M6106EDR, M6106EWR, 651MAW, 652AD, 653AWS, 654ADS, 655EW, 656ED, 657EWS, 658EDS, 6106TR, 6106WAR, 640H, 641WA, 643MWA
F&P OR61 Freestanding Ranges: 80744-A OR61S4CEWW2, 80745-A OR61S8CEWSW2, Oregano, Paprika, Pepper, Sage, Saffron, Tamarind, Thyme
ELBA OR61 Freestanding Ranges: 80551-A OR61S2CAWW 1, 80552-A OR61S2CBW1, 80553-A OR61S4CAWW 1, 80554-A OR61S8CEWW 1, 80555-A OR16SBCEWSW 1, 85260-A OR61S8CEWSW3, 85260-B OR61S8CEWSW3, 85262-A OR61S2CEWW3, 85262-B OR61S2CEWW3, 85463-A OR61S4CEWW4, 85463-B OR61S4CEWW4, 85464-A OR61S2CEWW4, 85464-B OR61S2CEWW4, 85465-A OR61S8CEWSW4, 85465-B OR61S8CEWSW4, 89185-A OR61S2CAWW2, 89186-A OR61S4CEWW2, 89187-A OR16S8CEWSW2
