Meter Eastron 45 Amp

SKU: SDM120-Modbus
Price:
$133.85

Description

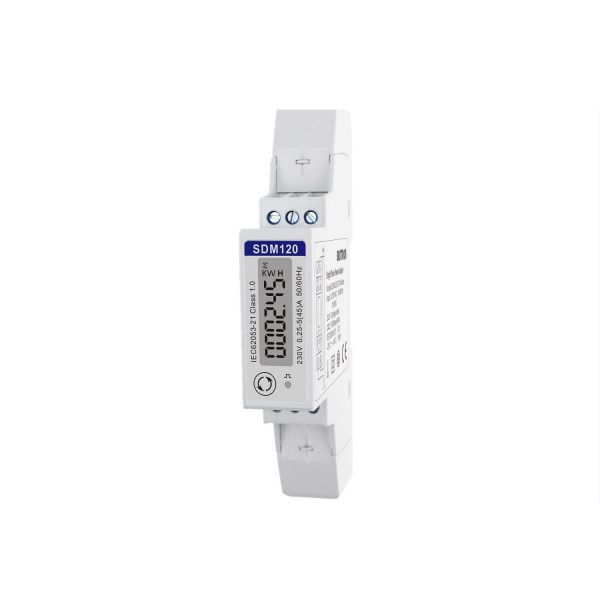

Eastron SDM120-Modbus Power (kWh) Usage Meter 230 volts AC single phase, 45 Amp, DIN rail mount. Sophisticated & accurate to IEC62053-21. Pulse output and RS485 Modbus communication capable (requires EEM Meter setting software).

  • Nominal voltage(Un) 120 or 230 volts AC
  • AC voltage withstand 4kV for 1 minute
  • Impulse voltage withstand 6kV 1.2 ms
  • Basic current 5 amps
  • Maximum rated current (Imax) 45 amps
  • Operational frequency range 50/60 Hz
  • Internal power consumption Less than or equal to 2 watts
  • Pulse output 1000Imp/kWh
  • Display - LCD with backlight
  • Max reading 99999.9

    •
