Description

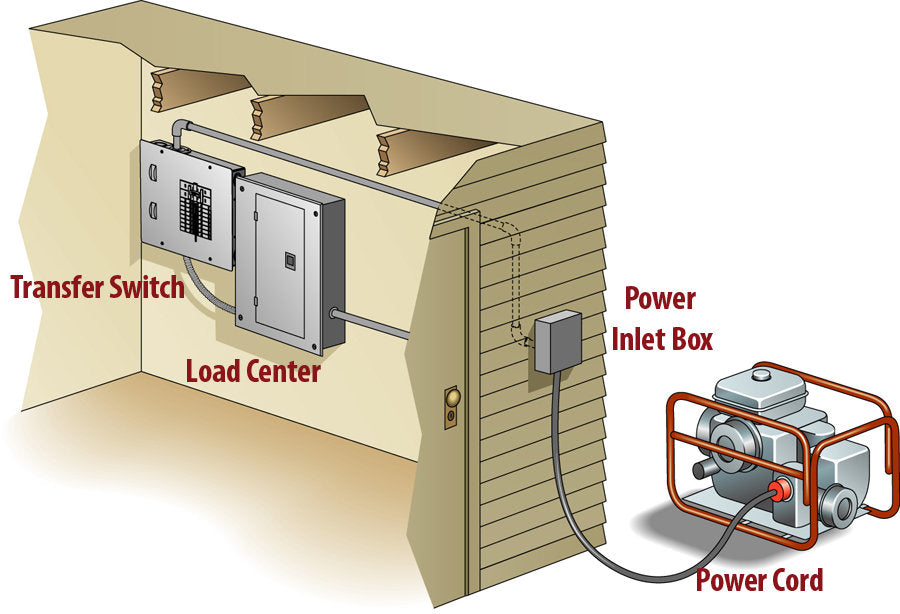

Purpose: Use your portable generator to supply power to your home or office switchboard as a power backup
Kit for connecting a single phase portable generator (up to 3.5kW) to a building's MEN switchboard electrical system (usually the main switchboard in a house or office for example, not a sub-board). Designed to comply with the requirements of both the generator and AS/NZS3000. If you are using a generator with a transportable (caravan, food trailer, RV etc) please see our "Generator to Transportable Connection Kit". Each kit comes with the basic electrical accessories required for a generator with a 15 amp 3 flat pin socket outlet but can be customised to individual requirements:
- 3 metres of 1.5mm 3 core heavy duty rubber flexible cable for the connection lead
- 15 amp 3 flat pin IP67 male plug & 15 amp 3 flat pin IP67 female cord connector for the connection lead
- Surface mounted Gewiss IP65 15 amp 3 flat pin male inlet for mounting on the building
- Switchboard DIN mounted NHP 2 pole main switch
- Switchboard DIN mounted Gewiss 16 amp 2 pole changeover switch
- Wiring diagram & installation notes
- Must be installed by a registered electrician
Also available: automatic changeover kits, please contact us with your requirements
