Description

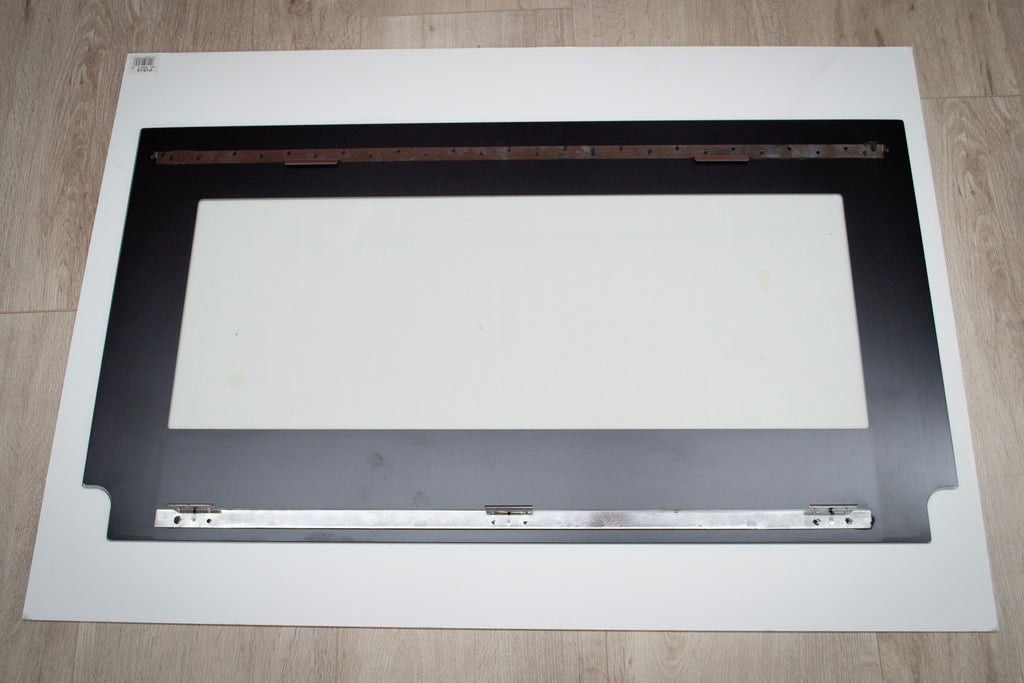

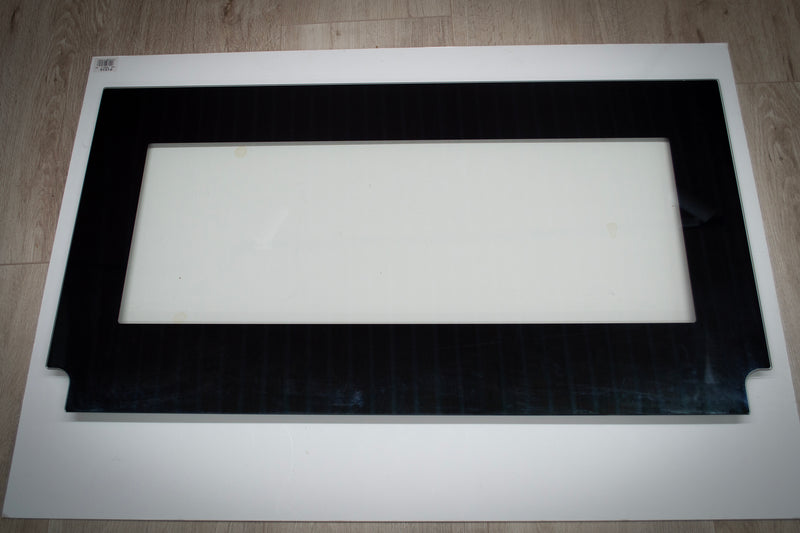

Inner door glass, 840 x 460 with a 680 x 255 window, for some 90cm oven models. Two types of fixing plates attach the glass to the inner frame, 5 clip (3 bottom, 2 top) or 6 clip (3 bottom, 3 top), choose carefully by inspecting your glass fixing points as both types can be fitted to either brand:
F&P, HAIER: 61736-A HOR90S9MSX1
EUROTECH: ED-EUROC90BK, ED-EUROC90SS, ED-EUROGE90BK, ED-EUROGE90SS
AWARD: A9062C
Note: 6 clip is now obsolete, repair requires the following:
- 5 clip inner door glass
- New inner frame with middle glass
- New outer door glass & handle assembly
- Your existing hinges get fitted to the new assembly
- Please call for pricing & availability
