Description
- Monitor and schedule your hot water cylinder on your phone from anywhere - read power used in real time and accumulated (meter) plus temperature
- Create schedules using time & temperature to maximise savings
- Kit supplied ready to connect by your electrician, most installs would take between 15-45 minutes
- App setup is intuitive, depending on scheduling required may require some expertise with home automation
- No hub required! Easy control through the Shelly Smart Control app, use it with Alexa, Home Assistant, or your preferred automation system
Save significant money on your hot water bill by scheduling your hot water cylinder easily as required. Suitable for all electric hot water cylinders and essential for maximising savings for solar installations.
From the EECA regarding solar installs: "If you’ve got an electric hot water cylinder, including a timer in your installation can turn it into a cheap form of energy storage. These devices will pre-heat your hot water while the sun is shining so you can make use of it later. This will save you money as heating water is a large part of most household power bills."
Controlling a HWC has never been easier - switchboard timers are complicated to setup accurately and laborious to change frequently. Being able to control your HWC easily from an app on your phone means you can take full advantage of cheaper tarriffs and special offers from your power authority, ideal for power companies that offer a free hour of power like Electric Kiwi or Contact with their 3 free hours. Or just save money by heating the cylinder once a day instead of everytime someone turns a hot tap on. When correctly installed and setup there should be no difference in water temperature at the tap so there is no danger from bacteria.
Multiple installation options:

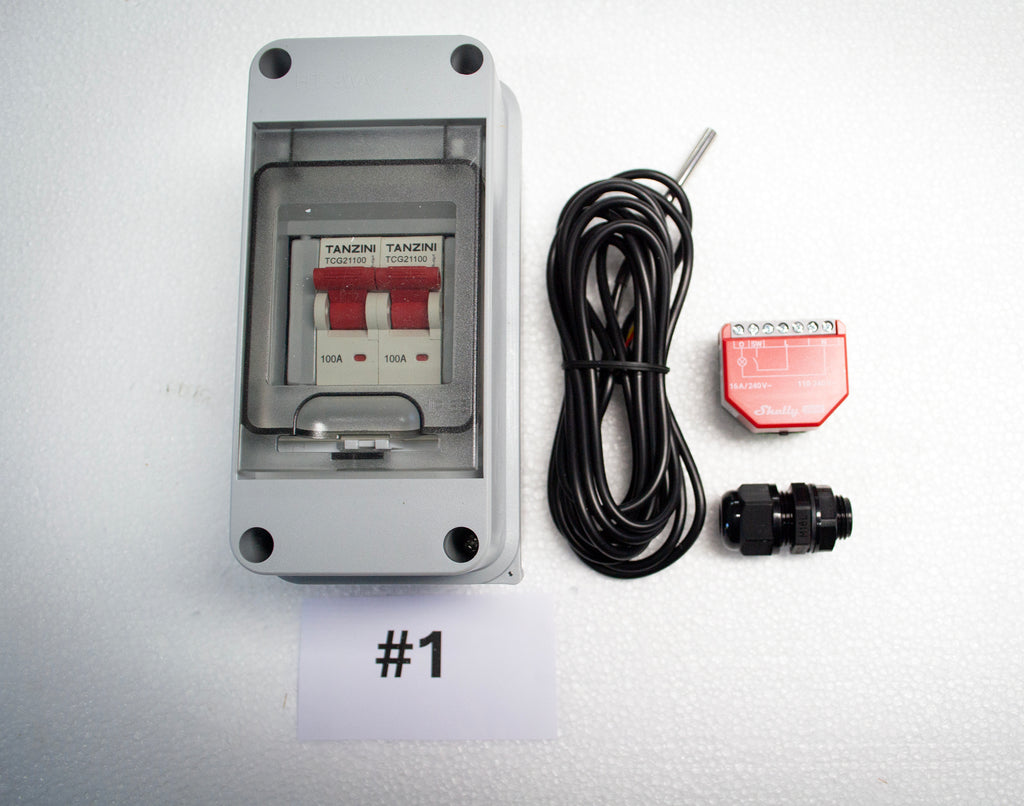

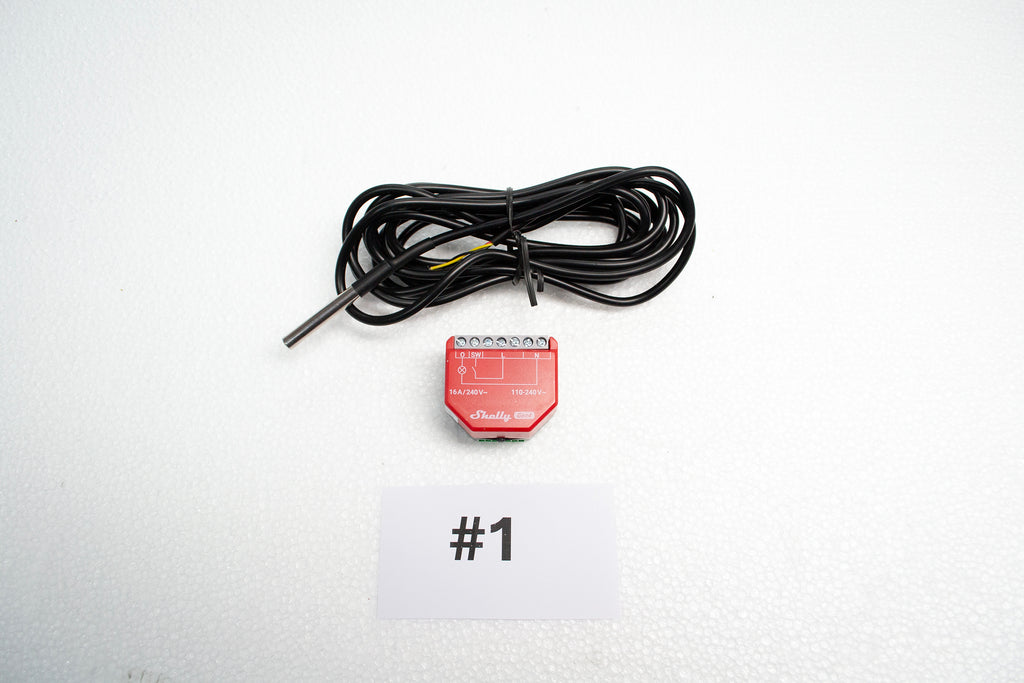

#1 - Bare kit with WiFi/Bluetooth modules & temperature sensor for elements up to 3kW, modules will be installed behind existing connection unit (requires approx 50mm depth)

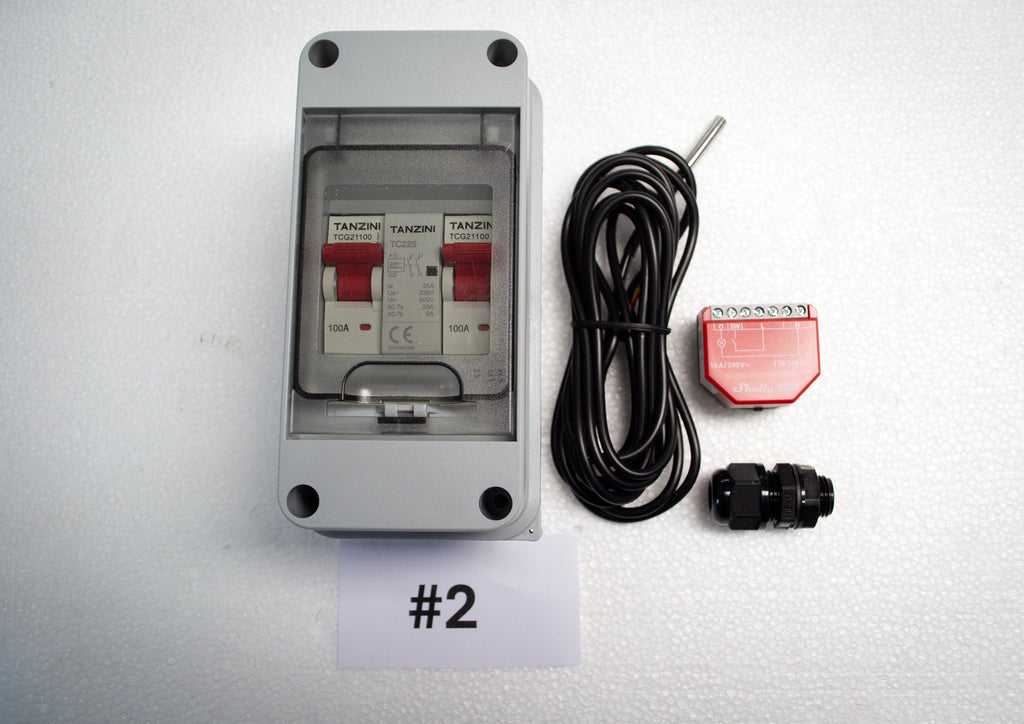

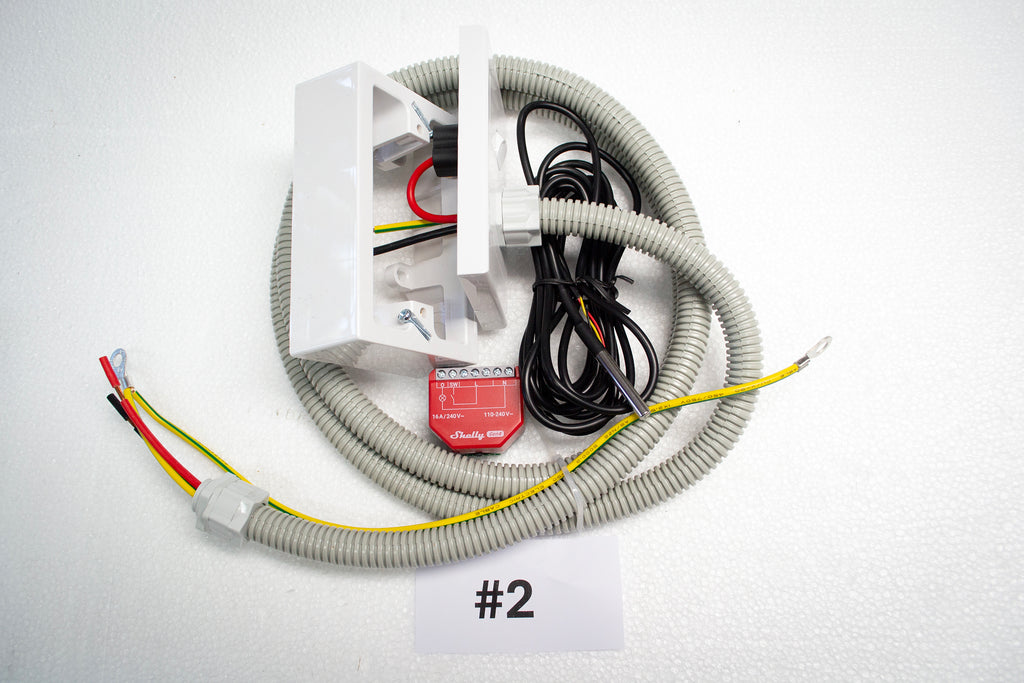

#2 - WiFi/Bluetooth modules & temperature sensor for elements up to 3kW plus connection kit with new wiring and extra deep mounting block to replace existing connection to hot water cylinder

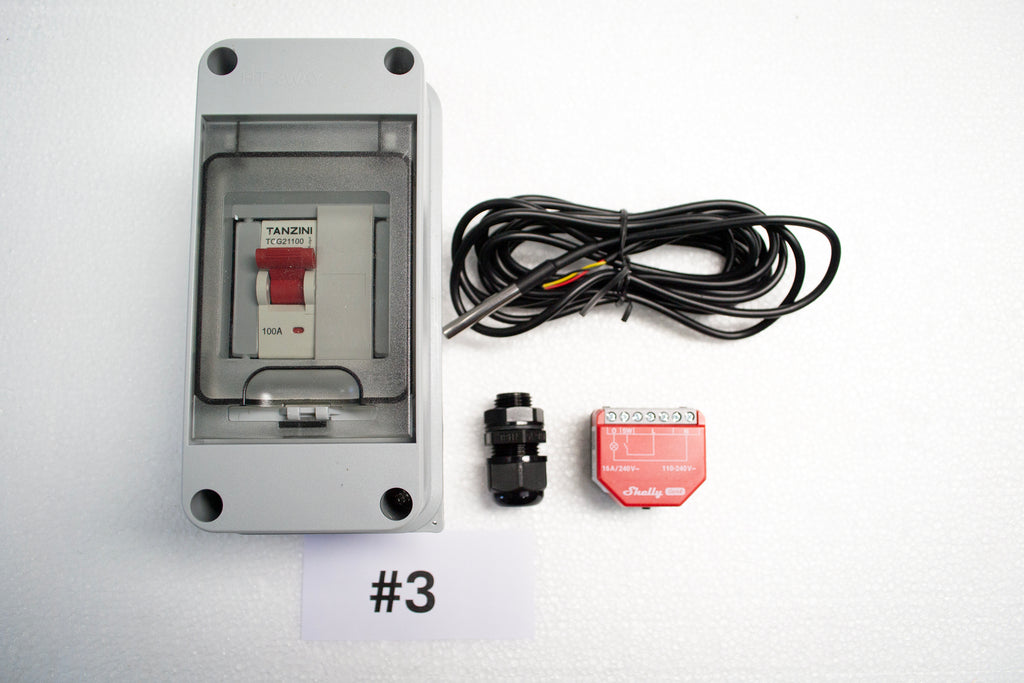

#3 - WiFi/Bluetooth modules & temperature sensor for elements up to 3kW plus weatherproof mounting box with isolator switch to house modules. Uses existing wiring to hot water cylinder

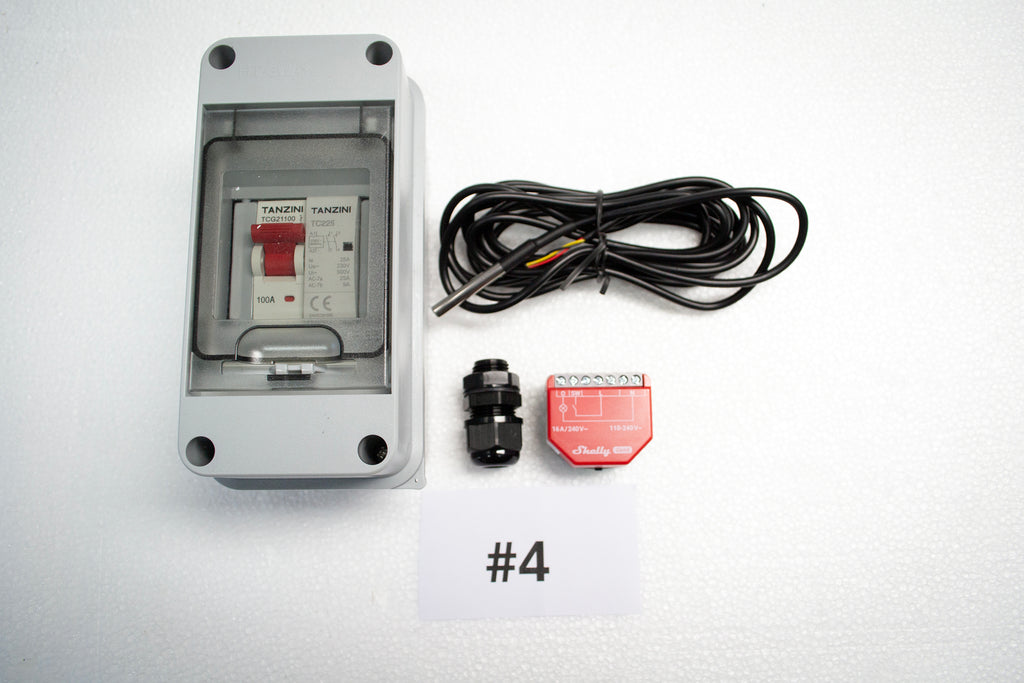

#4 - Same as #3 but with a contactor for 4-6kW elements
Specifications:
- Shelly WiFi/Bluetooth modules (1PM-G4, Plus-Addon) rated 16 amps at 110-240 volts AC can use Shelly Smart Control app or standalone, or with other home automation platforms, Matter, Zigbee.
- Module 42 x 38 x 30mm (plus wiring space)
- WiFi b/g/n/ax, Bluetooth protocol 5, Zigbee 802.15.4
- Global Mark standards compliance, AS/NZS standards compliance for wiring loom and switch
- Temperature sensor range -55 degrees to 125 degrees C
- Optional hot water cylinder connection kit, 32 amp switch, 1.5m flexible conduit
- Optional weatherproof enclosure IP65, 73w x 160h x 95d with 100 amp isolator switch
- Optional contactor rated 25 amps 2 pole
- Instructions included
