Description

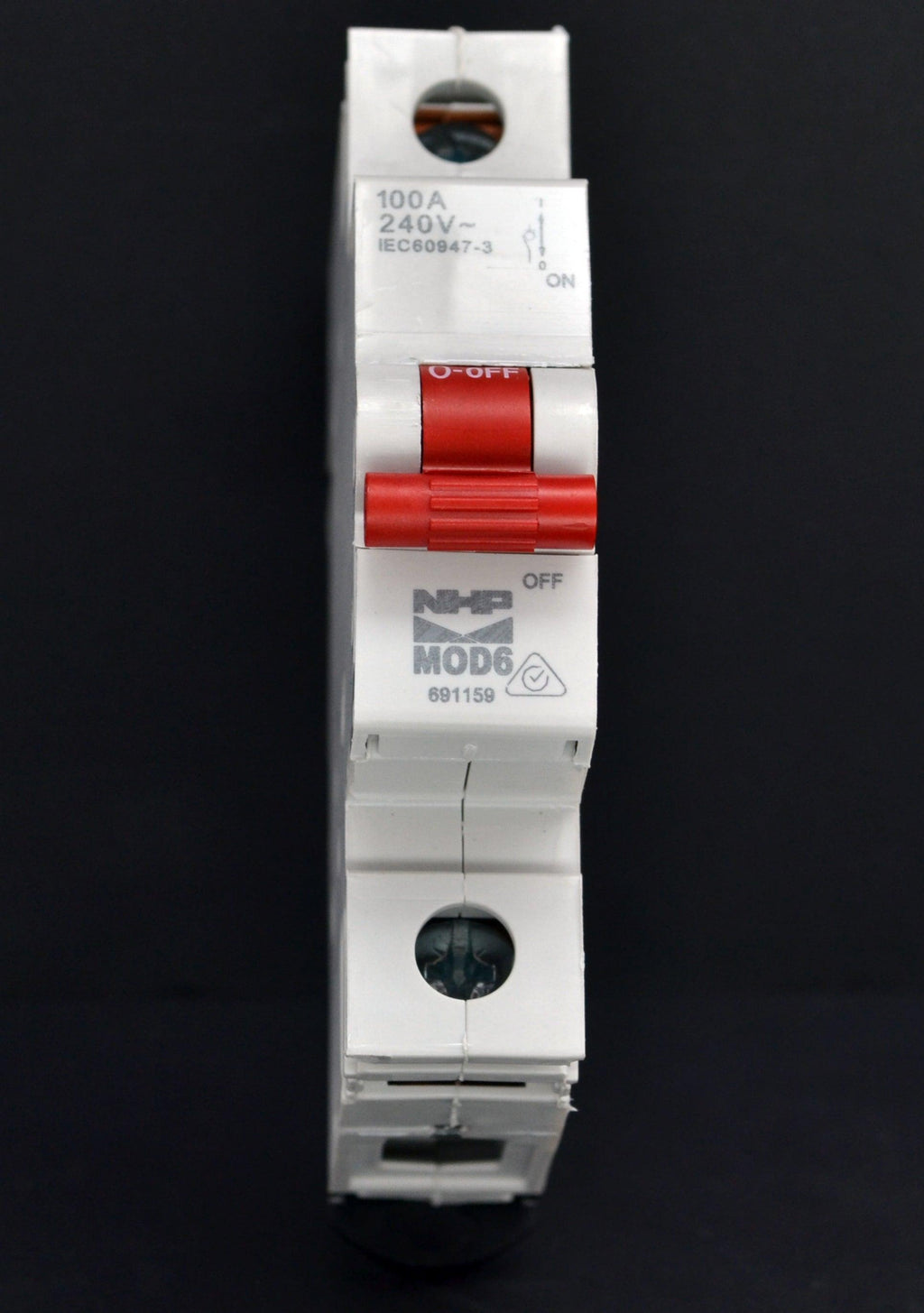

NHP main isolating switch, 100 Amp, 1 pole, DIN rail mounting
Rated current 100 A
Number of poles (total) 1
Rated voltage 240 V
Frequency 50-60 Hz
Voltage type AC/DC
Service voltage Ub, AC 12 V
Rated impulse withstand voltage Uimp 8 kV
Degree of protection (IP) IP40
Connectable conductor cross section solidcore 1-50 mm²
Height 86 mm
Width 18 mm
Depth 80 mm
Width in number of modular spacings 1
Weight 0.88 kg
ENVIRONMENT
Pollution degree 3
Rated surrounding temperature without
derating 30 °C
Ambient temperature during operating -5…40 °C
