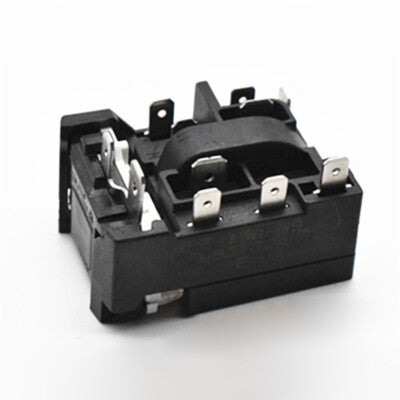

Overload Start Relay Eurotech Refrigerator Motor Protection QPS2-C15MD3

Combination compressor starter & overload protection, marked QPS2-C15MD3. Listed for EUROTECH: TURF197 (FC2-260).
The QPS2-C15MD3 is a combination PTC start relay and overload/overheat protection assembly designed primarily for Homa refrigerator compressors, and compatible with select models from brands like Haier or Hisense.

Key Functions and Specifications

• PTC Starter: Uses a positive temperature coefficient (PTC) thermistor that acts as a heat-sensitive switch to momentarily energize the compressor's start winding, then cuts power to it once the motor is running.
• Overload & Overheat Protection: Built-in safety switch cuts power if the compressor draws excessive current or reaches dangerous temperatures, protecting the motor from burning out.
• Design: Plug-and-play black plastic housing with direct pin connections that push straight onto the compressor terminals.

Common Symptoms of a Faulty Relay

• The refrigerator clicks repeatedly, hums, or fails to cool.
• The compressor attempts to start but trips the internal overload protector and shuts down.
• Rattling noises or visible burn/char marks inside the plastic housing.
