Description

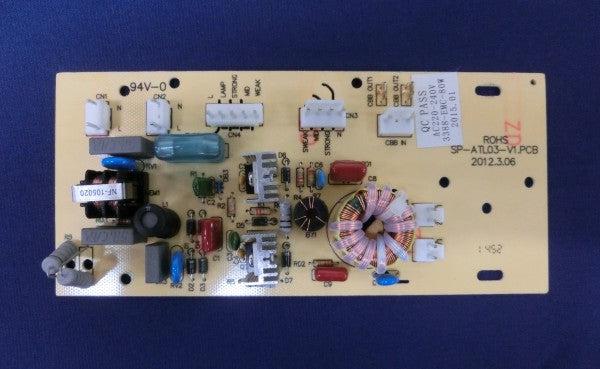

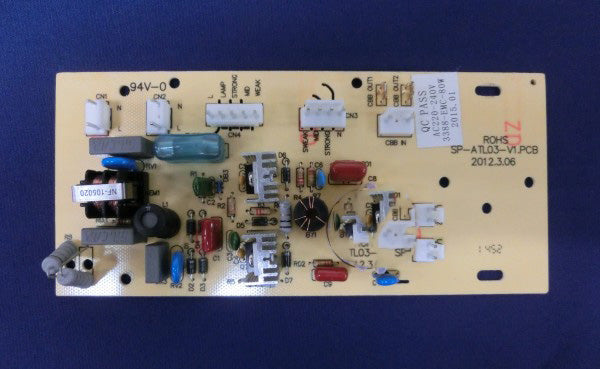

PCB board for some Robinhood, Parmco & Omega rangehoods. The motor capacitor needs to be swapped from the existing PCB. This board has 2 x 5-pin connection terminals, 2 x 2-pin LED lamp connections, it is only suitable for versions that have LED lamps or you can change to LED lamps, do not use for halogen lamp models (this PCB does not have the halogen transformer):
OMEGA: ORW6XA, ORW6XL, ORW9XA, ORW9XL
ROBINHOOD: RWC3CH6SS, RWC3CH9SS, RWC3CH6WH, RWC3CH9WH, RWC3CL6WH, RWC3CL6WHA, RWC3CL6WHT, RWC3CL6SS, RWC3CL9WH, RWC3CL9SS, RBEC91RH RWE3CH6SS, RWE3CH9SS, RWE3CL6SS, RWE3CL9SS
EVERDURE: RBES63, RBES91
Note: Electronic PCBs must be installed by a qualified person and cannot be returned once fitted
