Description

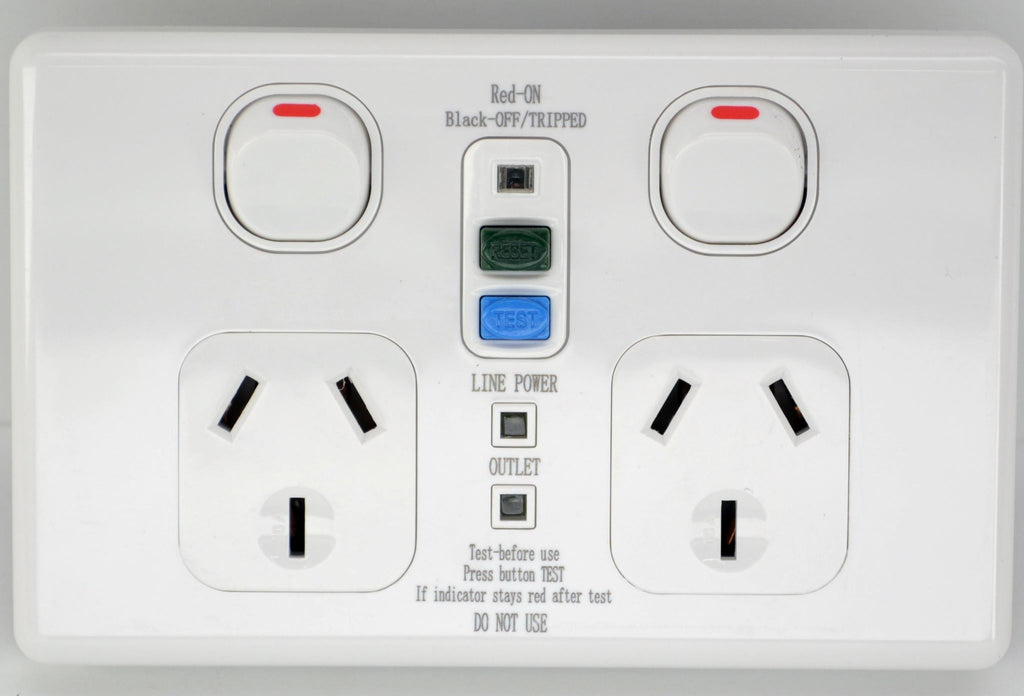

RCD Power Point Double 10A, 30mA, Type A RCD to AS/NZS3190. Can also protect "downstream" power points. Best value RCD socket on the market.
Specifications:
Type A
Rated Voltage: 230-240VAC
Rated Current: 20A max (Total)
Frequency: 50Hz
Rated Tripping Current: 30mA Operating Speed: <40mS Max.
L/Nin-L/Nout: 2KV
Endurance: 2000 Cycles Minute
RCD Contact Break: Double Pole
Switch Contact Break: Single Pole
Standards: RCD Module-AS NZS 3190, Socket-AS NZS 3112
Minimum Back Box Depth: 35mm
Fixing Screws: M3.0 x 25mm
Cable Capacity: 4x2.5mm2,2x4mm2,1X6mm2
IP Rating: IP30
Weight: 144g
Dimensions: 120(W) x 76(H) x 50(D)mm
