Description

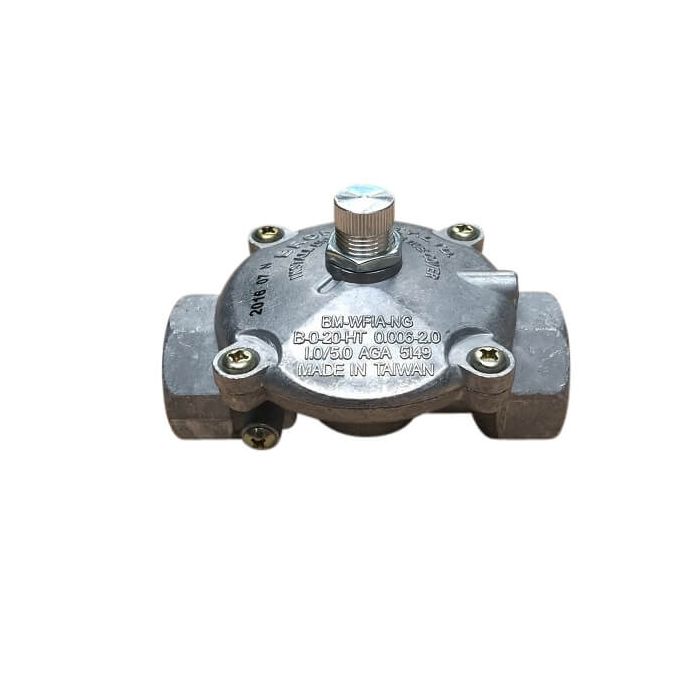

Bromic natural gas regulator, Australia AGA standard approved
• Model designation: BM-WF1A-NG (also known as BM-WF-1A)
• Approval: AGA 5149
• Maximum inlet pressure 5.0 Kpa
• Outlet pressure 1.0 Kpa. Pre-set but adjustable
• Flow rates: 0.06 to 2.0 m3/hr air. 78MJ/hr
• Temperature Limitation 0°C to 120°C maximum
• Integrated test point adaptor
• Inlet size: Rp ½” F
• Outlet size: Rp ½” F
• Mounting Limitation: NIL
• Type - B, Class - O, Grade - 20
