Reverse polarity protection kit comprising changeover contactor & buzzer for mounting in a suitable DIN rail enclosure or switchboard. Disconnects the power to the caravan, boat, RV or transportable if the supply lead is wired incorrectly, designed to assist compliance with AS/NZS3001-2022 requirements for transportable electrical installations. Activated by voltage between neutral & earth (reverse polarity fault condition), disconnecting the supply and illuminating a warning LED. Backup buzzer sounds continuously in the event of a failure of the relay.
- DIN rail mount kit can be easily retrofitted into any DIN rail switchboard with suitable space available

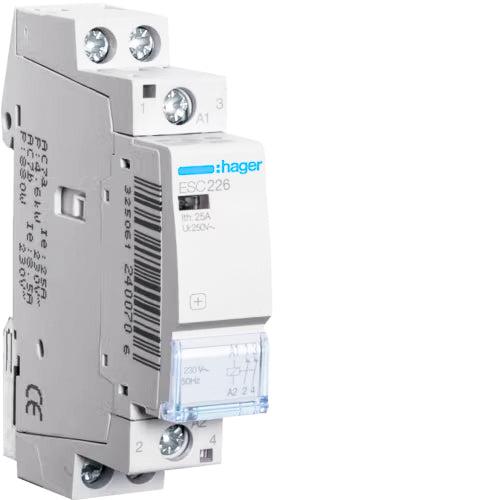

- Hager 25 amp contactor, 18mm (1 pole) wide

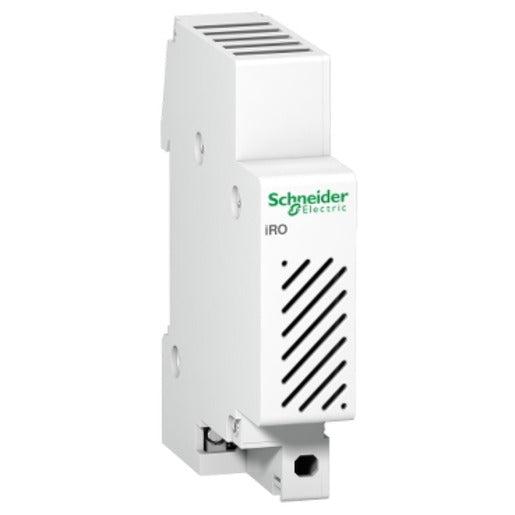

- Schneider buzzer, 18mm (1 pole) wide

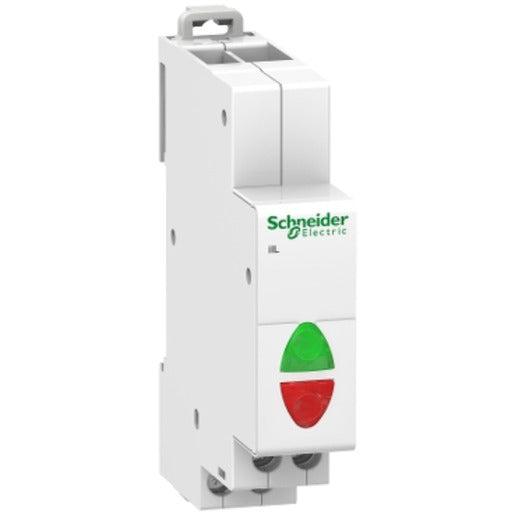

- Schneider LED indication module, 18mm (1 pole) wide, illuminates green for correct polarity & red for reverse (fault)
- Total switchboard width - allow 4 ways (4 pole widths)
- Suggested connection instructions included
- Must be installed by registered electrician
